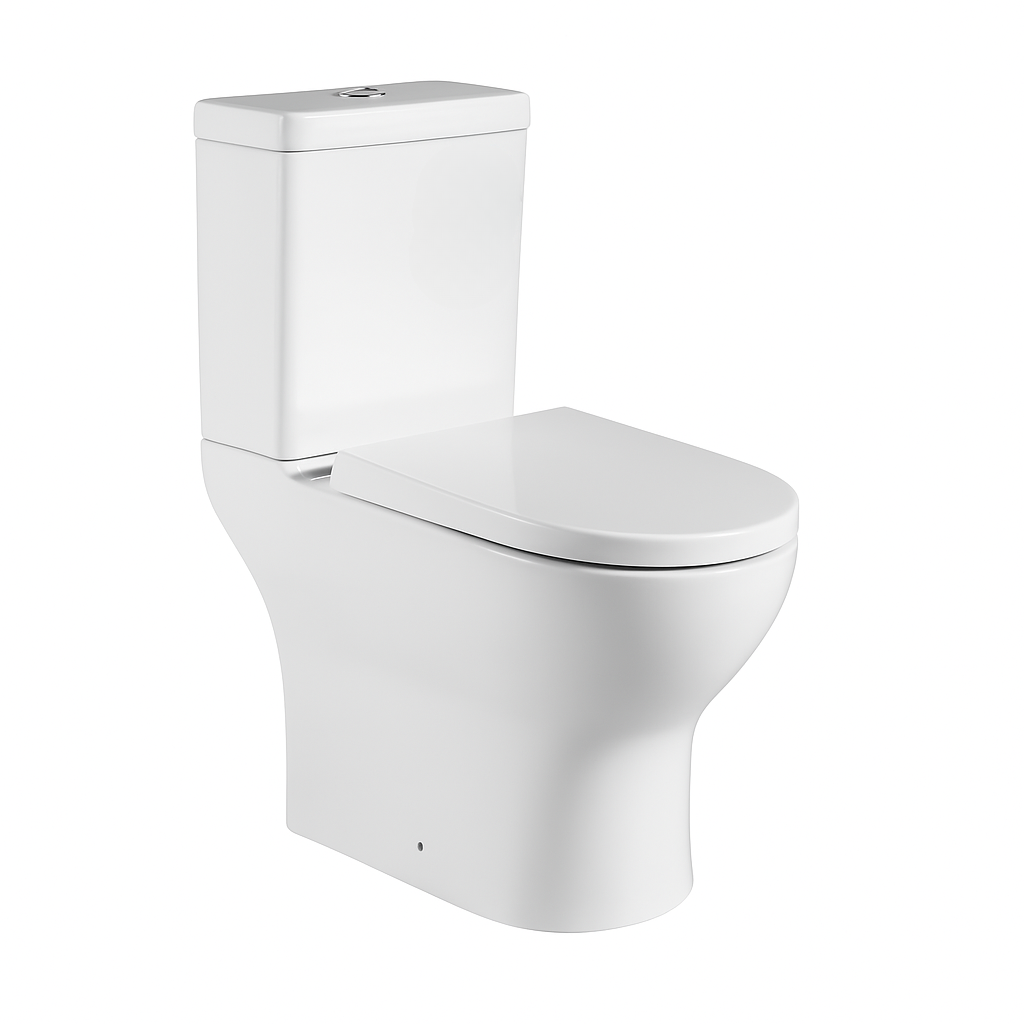

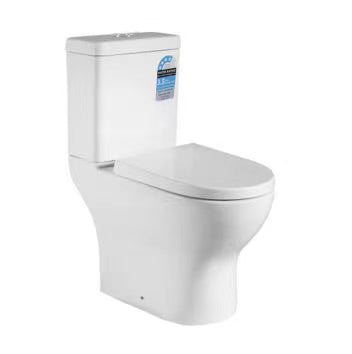

Bela Skew Box Rim Toilet Suite

The Bela Skew Box Rim Toilet Suite combines an easy-height raised pan with a practical box-rim design and efficient dual-flush operation. Its back, left and right bottom inlet options provide installation flexibility, while the supplied adjustable Trap-100 and UF thick soft-close seat add convenience. With several optional trap and seat configurations available, the suite can accommodate a variety of bathroom plumbing layouts.

Key Features & Benefits

• Skew Box Rim Design – Provides a traditional yet streamlined toilet configuration suitable for contemporary bathrooms.
• Easy Height Raised Pan – Offers increased pan height for enhanced comfort and accessibility.
• 4.5/3-Litre Dual Flush – Provides full and reduced flush options to help manage everyday water consumption.
• Flexible Inlet Configuration – Suitable for back, left and right bottom inlet connections.
• Supplied KDK Cistern & Pan – Includes KDK027RC cistern and KDK027RP raised pan.

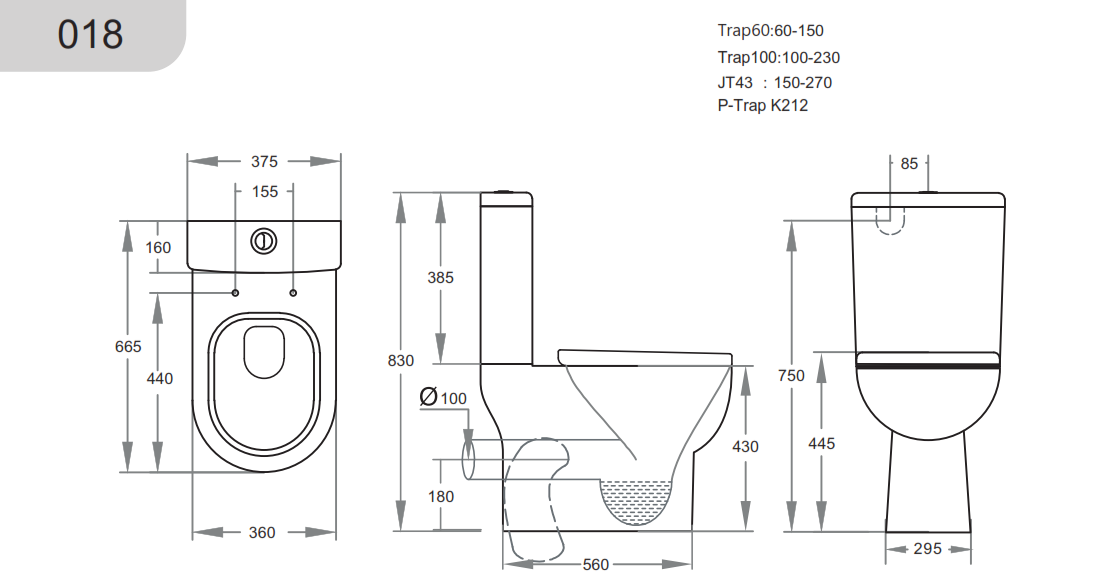

• Generous Dimensions – Measures 660 x 385 x 875mm.
• Trap-100 Included – Supplied with an adjustable 100–165mm trap.
• UF Thick Seat Included – Supplied with UF Thick Seat SC803.
• Flexible Installation Options – Optional traps and a slim seat provide additional configuration choices.

Specifications

Optional Configurations

• Trap-60: 60–105mm
• JT43: 150–215mm
• P-Trap (K212): 180mm
• UF Slim Seat: SC074

Warranty

• Ceramic Pans & Cisterns: 10-year replacement warranty
• Parts: 1-year replacement warranty, including toilet seat covers, flush pipes and buttons
• Inlet & Outlet Valves: 3-year replacement warranty
• Terms and conditions apply

The Bela Skew Box Rim Toilet Suite combines easy-height comfort, efficient dual-flush performance and flexible plumbing configurations in a practical bathroom solution. This easy height box rim toilet suite is well suited to modern bathrooms where comfort, reliability and installation flexibility are important.
