ENOX Rimless In Wall Toilet Suite Pan
The ENOX Rimless In-Wall Toilet Suite Pan combines a streamlined wall-faced design with hygienic rimless technology and water-efficient dual-flush performance. With a 600mm projection, comfortable 410mm pan height and flexible S-trap or P-trap installation, it is a practical choice for contemporary bathrooms and ensuites.
Key Features & Benefits
- Wall-Faced Floor Pan – Designed to sit neatly against the wall for a clean, integrated appearance.
- Hygienic Rimless Plus Technology – Creates an easy-to-clean bowl with fewer hard-to-reach areas.
- 600mm Compact Projection – Space-conscious design suitable for modern bathrooms and ensuites.
- 410mm Pan Height – Provides a comfortable, practical configuration.
- High-Quality Vitreous China – Durable ceramic construction designed for everyday use.
- Heavy-Duty Slim Soft-Close Seat – Easy-release seat with smooth and quiet operation.
- Flexible Plumbing Options – Supports both S-trap and P-trap configurations.
- R&T Dual-Flush Technology – Efficient 4.5L/3L water consumption.
- Multiple In-Wall Cistern Options – Compatible with Geberit Sigma 8, Geberit Kappa and R&T concealed cisterns.
- 20-Year Product Warranty – Includes 1 year of parts and labour coverage.

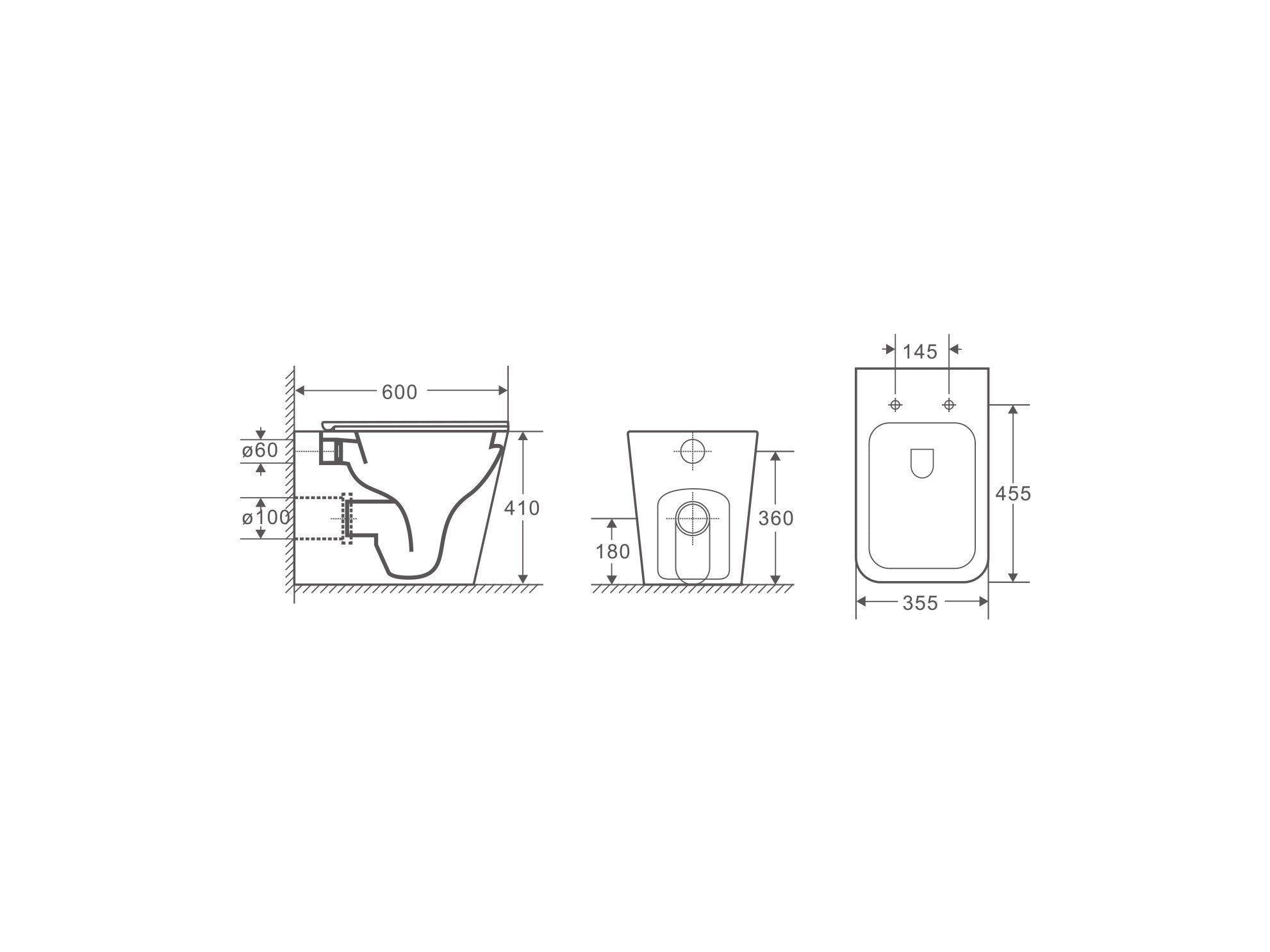

Specifications
| Specification | Details |
|---|---|
| Product | ENOX Rimless In-Wall Toilet Suite Pan |
| Model | ENWFP |
| Toilet Type | Wall-Faced Floor Pan |
| Dimensions | 600 × 350 × 410mm |
| Pan Height | 410mm |
| Material | Highest Quality Vitreous China |
| Bowl Design | Rimless |
| Flush Technology | R&T Dual-Flush |
| Seat | Heavy-Duty Slim Soft-Close |
| S-Trap Rough-In | 100–145mm |
| Original S-Trap | VB70 |
| Optional P-Trap | P180 |
| P-Trap Rough-In | 180mm |
| Full Flush | 4.5L |
| Reduced Flush | 3L |
| WELS Rating | 4 Star |
| WELS Licence | 1743 |
| Product Warranty | 20 Years |
| Parts & Labour Warranty | 1 Year |

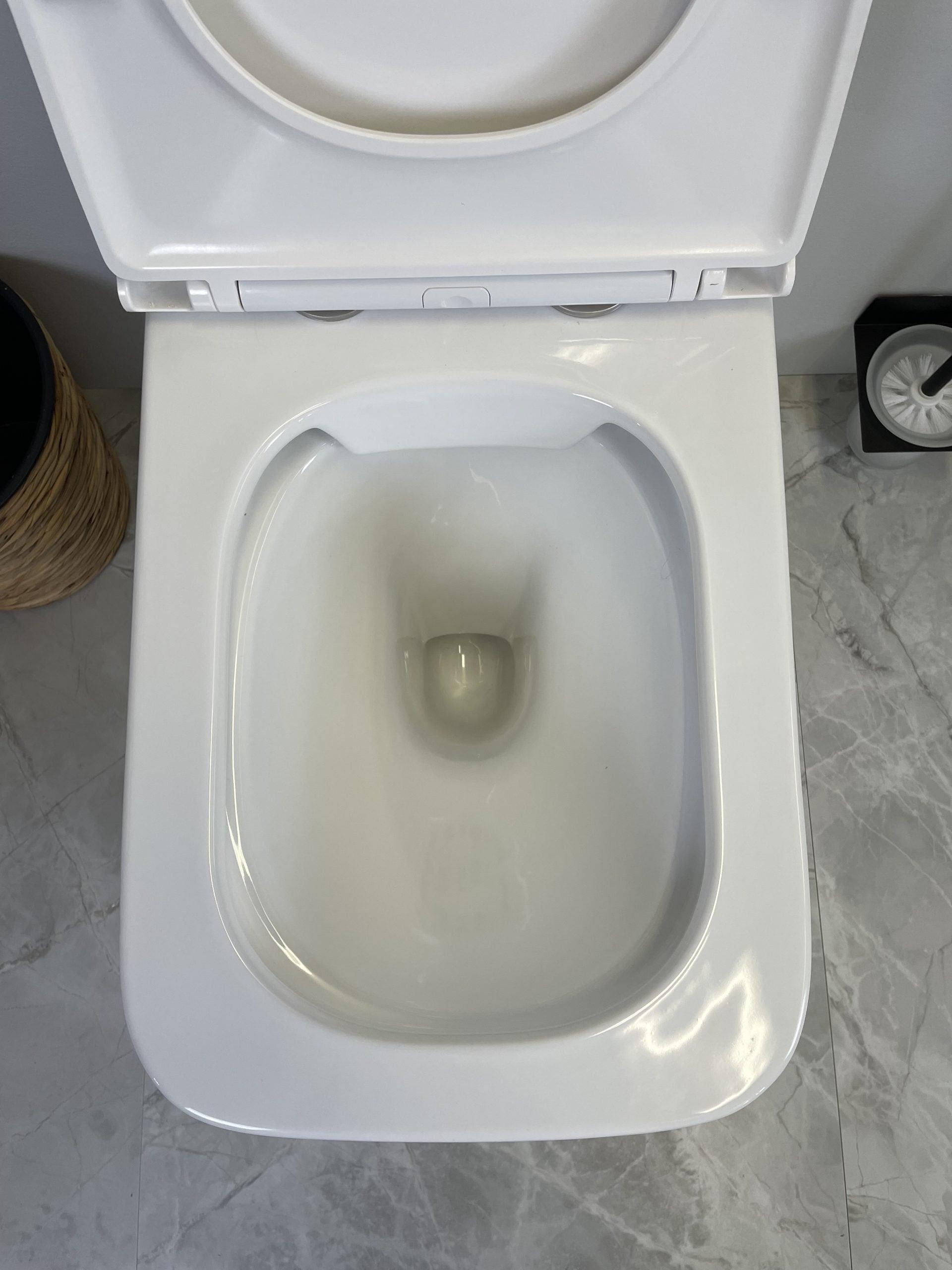

Hygienic Rimless Design
The Hygienic Rimless Plus Technology provides a streamlined bowl without the traditional rim, reducing difficult-to-reach areas and making routine cleaning easier. The result is a cleaner, more contemporary toilet design suited to modern bathroom interiors.
Flexible Installation Options
The ENOX supports an S-trap rough-in of 100–145mm using the supplied VB70 configuration. For alternative plumbing arrangements, a P180 P-trap with a 180mm rough-in is available as an optional configuration.
In-Wall Cistern Compatibility
The ENOX can be paired with:
- Geberit Sigma 8 In-Wall Cistern
- Geberit Kappa Under Counter In-Wall Cistern
- R&T In-Wall Cistern
Concealed cistern installation helps maintain a clean wall profile and uncluttered bathroom appearance.
Water-Efficient Dual Flush
The R&T dual-flush system provides a 4.5L full flush and 3L reduced flush. The toilet carries a WELS 4-star rating with WELS Licence No. 1743, providing efficient water consumption for everyday use.
Warranty
The ENOX is backed by a 20-year product replacement warranty, with 1 year of parts and labour coverage.
The ENOX Rimless In-Wall Toilet Suite Pan is an excellent option for homeowners and bathroom projects seeking a compact wall-faced toilet, easy-clean rimless bowl, flexible S-trap/P-trap installation, concealed cistern compatibility and efficient 4.5L/3L dual flushing.
