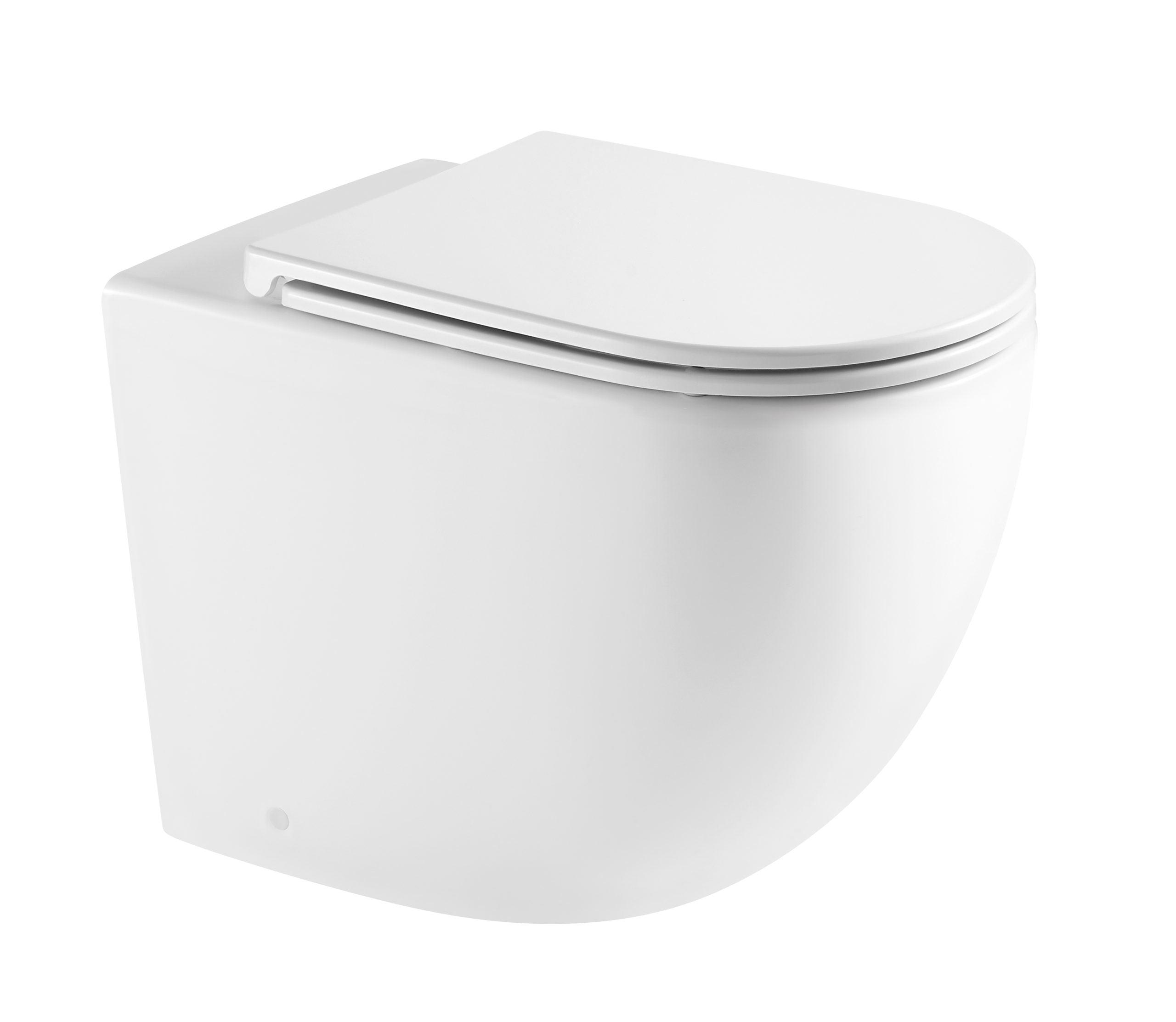

RAUL Rimless In Wall Toilet Suite Pan

The RAUL Rimless In-Wall Toilet Suite Pan combines a sleek wall-faced design with hygienic rimless technology, efficient dual-flush performance and flexible plumbing options. With a compact 570mm projection and 410mm pan height, it is well suited to contemporary bathrooms where space, comfort and easy maintenance are priorities.

Key Features & Benefits

• Wall-Faced Floor Pan – Sits neatly against the bathroom wall for a streamlined, integrated appearance.
• Hygienic Rimless Plus Technology – Provides an easy-to-clean bowl with fewer areas where residue can accumulate.

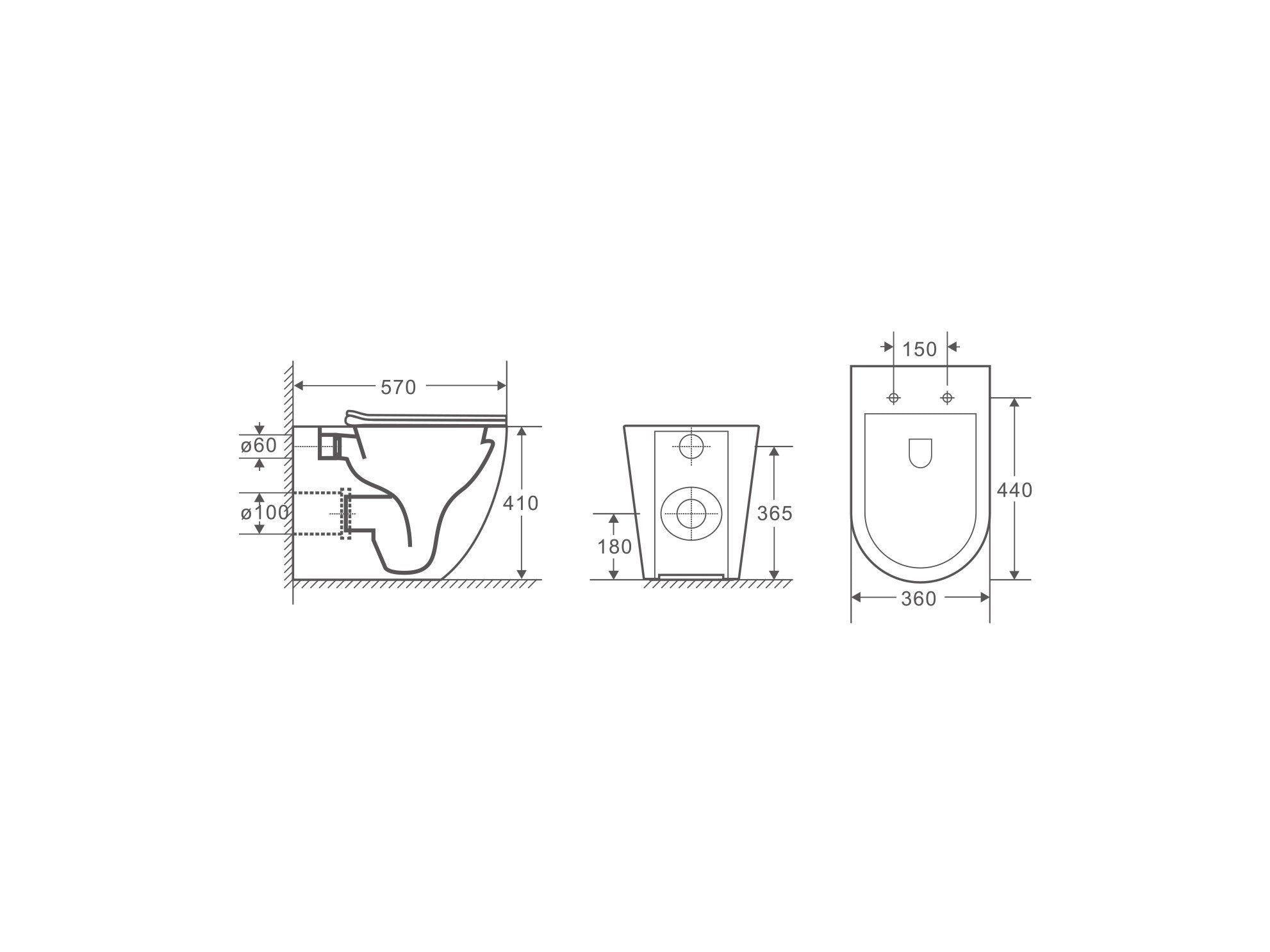

• Compact 570mm Projection – Space-efficient design suitable for bathrooms and ensuites.
• 410mm Pan Height – Provides a comfortable standard-height configuration.
• Gloss White Finish – Clean, timeless and easy to coordinate with other bathroom fixtures.
• High-Quality Vitreous China – Durable ceramic construction designed for everyday use.
• Slim Soft-Close Seat – Heavy-duty, easy-release seat provides quiet and convenient operation.
• Flexible Plumbing Options – Supports S-trap and optional P-trap configurations.
• R&T Dual-Flush Technology – Efficient 4.5L/3L water consumption.
• Concealed Cistern Compatibility – Compatible with Geberit Sigma 8, Geberit Kappa and R&T in-wall cisterns.
• 20-Year Product Warranty – Includes 1 year of parts and labour coverage.

Specifications

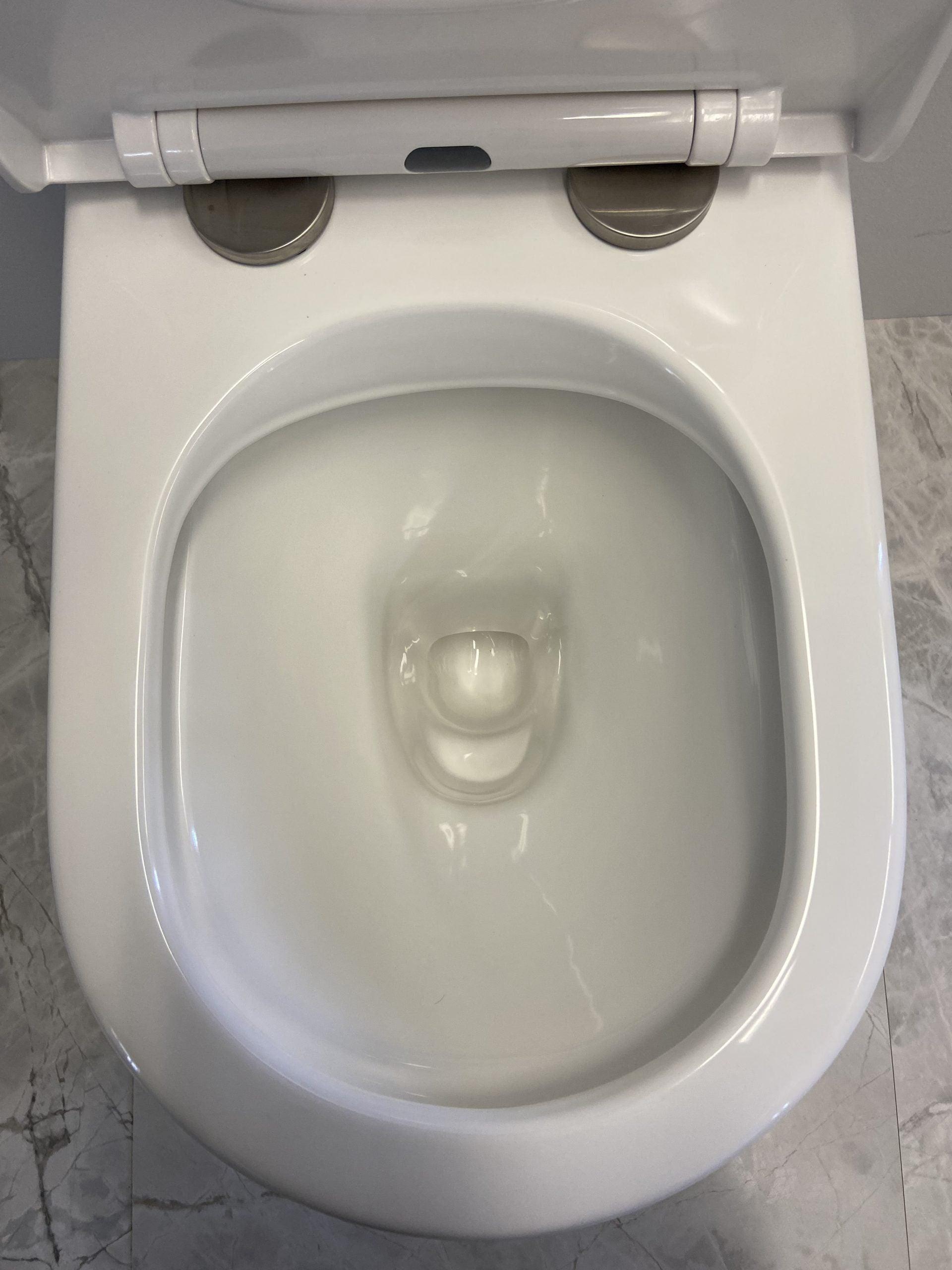

Hygienic Rimless Design

The RAUL incorporates Hygienic Rimless Plus Technology, creating a streamlined bowl without the traditional rim that can be difficult to access during cleaning. The smooth design helps simplify routine maintenance while maintaining a contemporary appearance.

Flexible Plumbing Configuration

The toilet supports an S-trap rough-in of 95–155mm, making it suitable for a range of existing plumbing layouts. An optional P180 P-trap with a 180mm connection provides additional installation flexibility.

In-Wall Cistern Compatibility

The RAUL can be paired with:

• Geberit Sigma 8 In-Wall Cistern
• Geberit Kappa Under Counter In-Wall Cistern
• R&T In-Wall Cistern

These concealed cistern options help maintain a clean, uncluttered bathroom appearance while providing flexibility for different installation requirements.

Water-Efficient Dual Flush

The R&T dual-flush system uses 4.5L for a full flush and 3L for a reduced flush. With a WELS 4-star rating and WELS licence number 1743, the RAUL offers water-efficient performance for everyday bathroom use.

The RAUL Rimless In-Wall Toilet Suite Pan is an excellent choice for contemporary bathrooms looking for a compact wall-faced toilet, easy-clean rimless design, flexible trap options, concealed cistern compatibility and efficient 4.5L/3L flushing.
