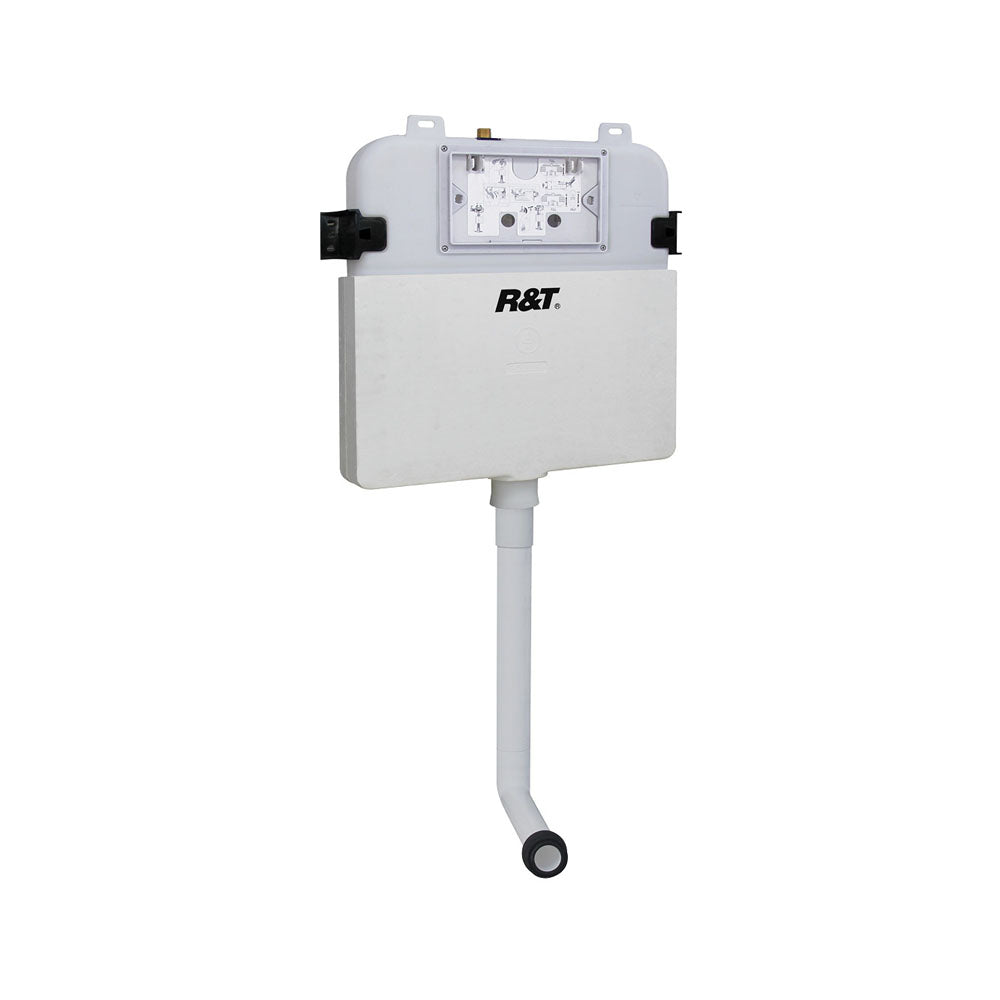

RNT In-Wall Cistern for Wall Faced Floor Pan

The RNT In-Wall Cistern is designed for floor-mounted, wall-faced toilet pans, providing a concealed cistern solution for a clean and streamlined bathroom installation. Designed to fit within a 90mm stud wall, it features a durable one-piece HDPE tank and a WELS 4-star dual-flush system with efficient 4.5L/3L water consumption.

Key Features & Benefits

• Designed for Wall-Faced Floor Pans – Suitable for floor-mounted toilets that sit neatly against the bathroom wall.
• Concealed In-Wall Installation – Hides the cistern behind the wall for a clean, minimalist appearance.
• 90mm Stud Wall Compatible – Designed to fit within a standard 90mm stud wall configuration.
• One-Piece HDPE Tank – Durable HDPE construction provides a reliable concealed cistern solution.
• WELS 4-Star Rated – Provides water-efficient flushing performance.
• 4.5L/3L Dual Flush – Offers full and reduced flush options to help manage water consumption.
• 3.3L Average Flush – Delivers an efficient average water consumption figure across flush cycles.
• Wide Operating Pressure Range – Suitable for water supply pressures from 10–1000kPa.
• Space-Saving Design – Concealing the cistern helps maintain a clean, uncluttered bathroom layout.

Specifications

Water-Efficient Performance

The RNT In-Wall Cistern is designed to provide efficient flushing while maintaining a clean concealed installation. Its 4.5L/3L dual-flush system allows users to select the appropriate flush volume, with an average consumption of 3.3L per flush.

Clean Wall-Faced Installation

By positioning the cistern inside the wall, the system keeps the visible toilet area neat and streamlined. The floor-mounted pan remains securely positioned against the wall, while the concealed cistern eliminates the need for a traditional exposed tank.

The RNT In-Wall Cistern for Wall Faced Floor Pan is an ideal solution for contemporary bathrooms requiring a concealed cistern, 90mm stud wall compatibility, water-efficient dual flushing and reliable HDPE construction.
